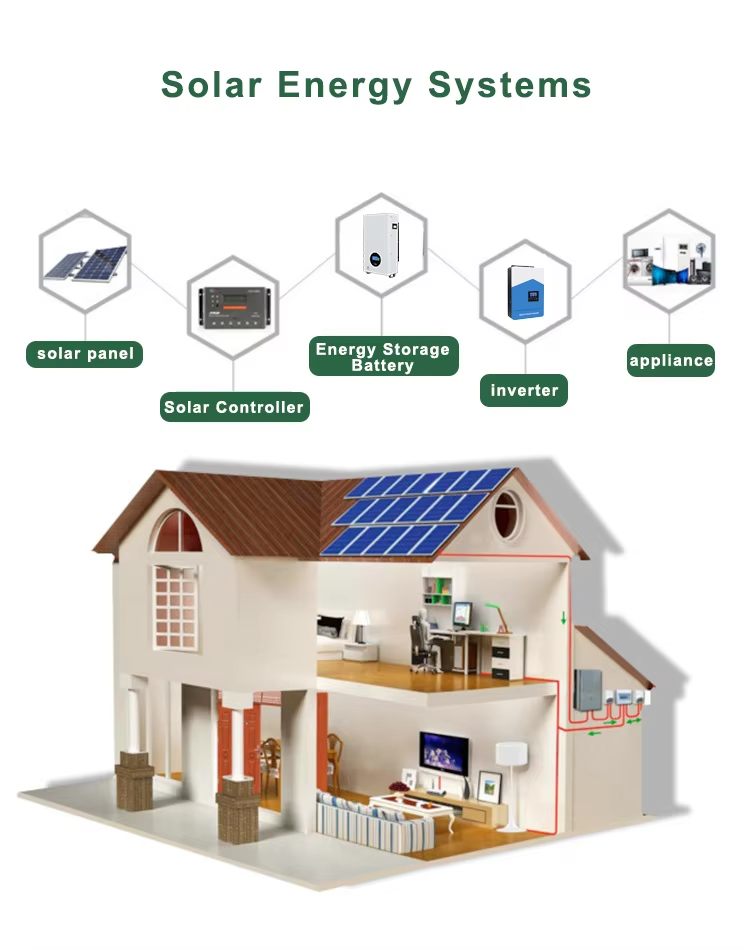

Home Energy Storage System - Wall-mounted LiFePO4 Battery Pack FT-48V100Ah
Features:
- The system is highly expandable, and the range of voltage and capacity is designed according to customer needs.
- Optional RS485, CAN communication is widely compatible with most inverters.
- 95% DOD depth of discharge.

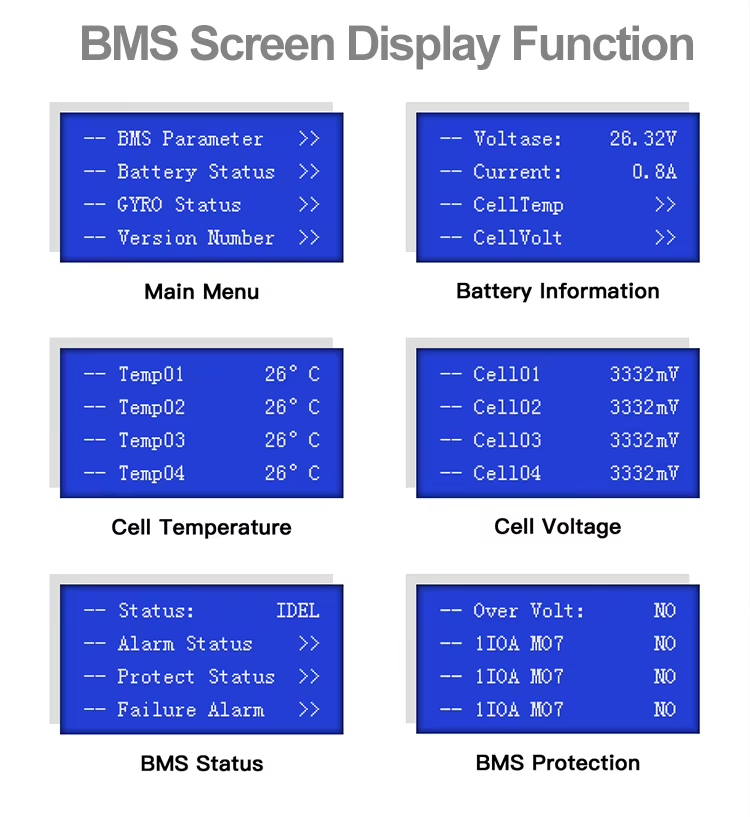

- Built-in BMS multiple protection communication function, real-time monitoring data.
Technical Parameters:
- Model: FT-S-48100
- Nominal Capacity: 100Ah
- Nominal Energy: 5120Wh
- Nominal Voltage: 51.2V
- Charge Voltage: 58.4V
- Cut-off Voltage: 40V

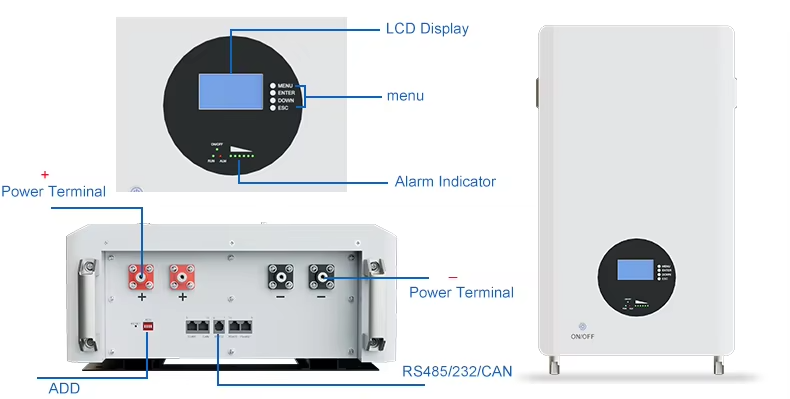

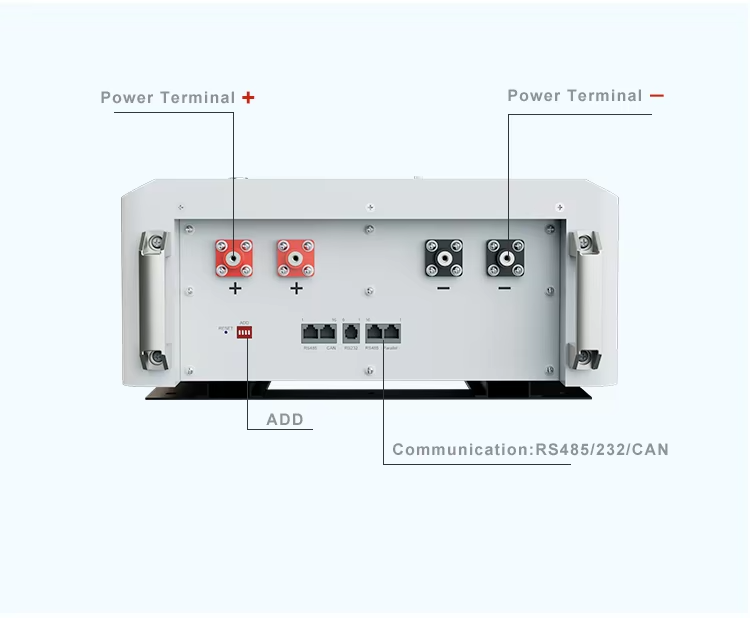

- Terminal: M6

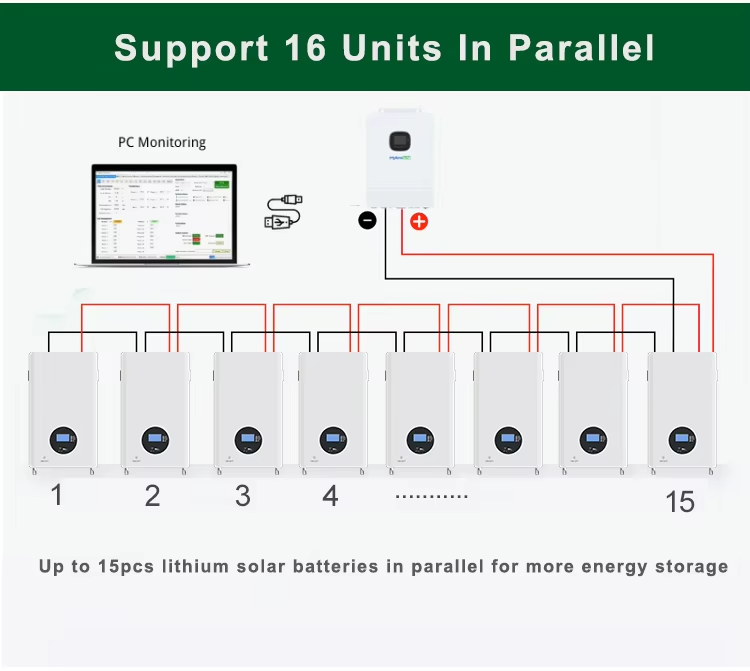

- Expandability: 1-15 in parallel
- Max. Charge Current: 100A
- Max. Discharge Current: 100A
- Communication: RS485, CAN
- Operating Temperature: Charge 0~50℃; Discharge -20~60℃
- Cycle Life: 6000 Times
- IP Class: IP20
- Dimensions: L400 × W185 × H675 mm
- Weight: ~60kg
- Certification: CE/FCC/UN38.3/MSDS
- Optional Function: Bluetooth, WiFi
- Warranty: 5 Years
